JT Coalescing Dehydration Hydraulic Oil Filtration Machine
- Our vacuum hydraulic oil filtration machine is used to recover and purify contaminated hydraulic oil, and is used as lubricating oil, mechanical oil, coolant oil, gear oil, heat treatment oil, etc. Our vacuum hydraulic oil purifier can quickly remove all pollutants such as moisture, particles, air, etc. from used hydraulic oil, and make the oil a new oil standard and can be used again.
- This machine adopts a dual-stage primary filtration structure, large-capacity particulate matter, and multi-stage filtration system to ensure high filtration accuracy. The use of special high-molecular materials as filtration materials has the functions of demulsification, dehydration, and particle removal. The equipment is equipped with an advanced intercooler system and an automatic backwashing system to improve work efficiency. Because it uses high-quality filter components, it has the characteristics of corrosion resistance, good mechanical properties and long service life.
Product Introduction
Our company has designed the hydraulic oil filtration system which combines the functions of high-efficiency dehydration and precision filtration. It adopts advanced “coalescence separation” dehydration technology, high dehydration efficiency, and strong ability, especially suitable for the separation of a large amount of water in lube oil.
It is a machine to filter waste lube oil and other kinds of waste oil. This machine has high efficiency and good effect in cleaning and filtering waste hydraulic oil. This JT series coalescing dehydration hydraulic oil purifier machine adopts 2 kinds of filter elements for dehydration. The coalescing filter turns the free and dissolved water from small molecules into large droplets, and the separation filter removes the drop by gravity, falling into the water tank.
Features of Hydraulic Oil Purifier
The purifier pipes and tanks can be stainless or carbon steel.
An oil-water interface detector is used to monitor the water level and drain the water automatically.
The electric system is controlled by PLC (touch screen), the working status of each component is clear at a glance, monitoring, alarming, action control, and safety stop make the oil filtration machine run online.
Germany’s brand oil pump has good sealing quality, low noise, and long service life.
Multi-layer filtration can remove impurities through coarse filtration, protective filtration, and fine filtration. The granularity test is good to reach NAS6.
Technical Data of Hydraulic Purifier
| Item | Name of Parameter | Model / Unit | JT-50 | JT-100 | JT-150 | JT-200 | |
| Technical Parameter | Flow Rate | L/h | 3000 | 6000 | 9000 | 12000 | |
| Working Pressure | Mpa | ≤0.35 | |||||
| Temperature Range | ℃ | 45-65 | |||||
| Power Supply | (380V~50Hz) 3Phase 4Wires, or as per buyer’s option | ||||||
| Total electric power | kW | 1.5 | 3 | ||||
| Pipe diameter of oil Inlet/Outlet | DN | 25/25 | 40/40 | 50/50 | 50/50 | ||
| Size | Length | mm | 1550 | 1750 | 1900 | 2000 | |
| Width | mm | 1000 | 1100 | 1200 | 1300 | ||
| Height | mm | 1400 | 1650 | 1550 | 1600 | ||
| Weight | kg | 4000 | 4500 | 5500 | 7000 | ||
| Oil Treatment Index | Water Content | ppm | ≤150 | ||||
| Cleanness | NAS | ≤6 | |||||
| Filtering Accuracy | µm | 3 | |||||
*The machine size, the weight will change slightly due to different configurations.

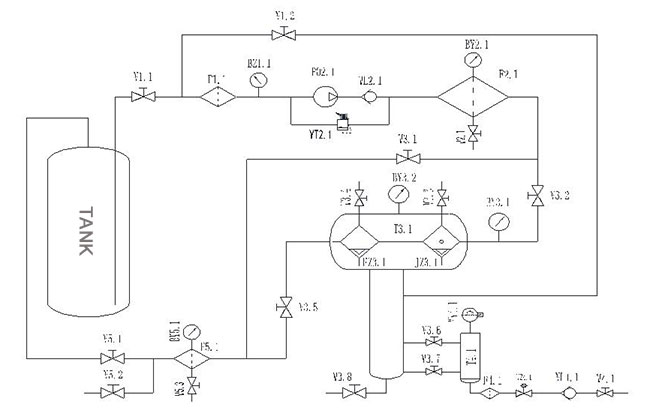

JT Hydraulic Oil Filtration Machine Flow Chart
Advantages of Hydraulic Oil Filtration Machine
- It uses the vacuum method and the centrifugation method can’t match, can break all the oil-water emulsified structure in the medium. Through the particle filtration system, the cleanliness of the medium can be controlled stably in the system requirements to ensure the cleanliness of the oil.
- Equipped with excellent system configuration and continuous performance, the JT series coalescing dehydration lube oil purifier machine is suitable for online operation. Particle filtration adopts high-efficiency filtration material as the filtration medium, large filtration area is designed to effectively filter very fine particle impurities and achieve high cleanliness of oil.

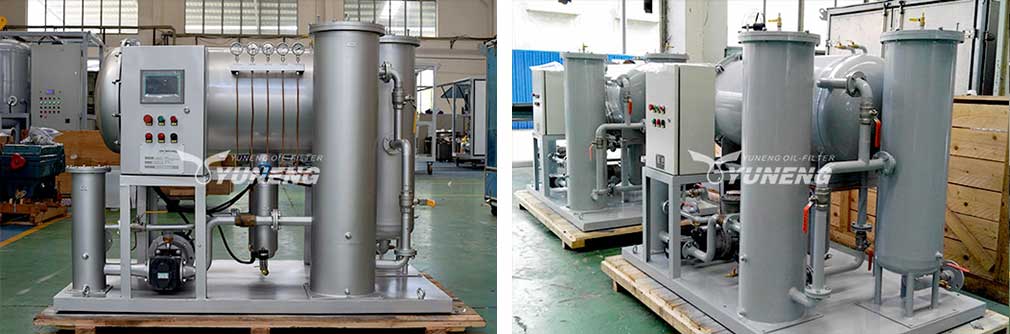

Product Images
Our company can produce 1,000 sets of oil purifier machines for other fluids every year. We are one of the world’s competitive companies specializing in high-tech oil purifier research and manufacture. If you have any questions or needs for our lube oil purifier, please feel free to contact us.
