2000LPH Mobile & Weather-Proof Transformer Oil Centrifuging Machine Mounted on Trailer
- Our Mobile & Weather -Proof Transformer Oil Centrifuging Machine Mounted on Trailer is a special design for outside operation. It takes all-weather housing cover to prevent rain and dust. And it is mounted on a double axle and four big car wheels to ensure it can be towed on the road.
- Our ZJA2BT has the same functions as the common ZJA double-stage vacuum transformer oil purifier machine. It can purify the transformer oil quickly by removing water, gas and mechanical particles. It also can pump out the non-corrosive gas in the transformer or other container. It is suitable for on-site transformer oil purification and oil maintenance for different places.
Product Description
Transformer Oil Centrifuging Machine is mainly used to improve the performance of insulating oil. It can effectively and quickly remove trace moisture, gas, particulate matter, etc. in insulating oil to improve the performance of transformers, circuit breakers, transformers, cables, and capacitors with insulating systems. The ZJA series is specially used to purify branded oil, insulating high voltage and extra-high voltage transformer oil. In addition, it is suitable for handling low viscosity lubricating oils. Dissolved gases in transformer oil can cause arcing, corona discharge, and overheating, reducing electrical efficiency
Parameters of Transformer Oil Centrifuging Machine
Model number: ZJA2BT
Nominal flow: 2000 L /Hr
Oil purification capacity: 33 L / Min
Working vacuum: ≤80Pa
Ultimate vacuum: ≤5Pa
Working pressure: ≤0. 5Mpa
Working temperature: 0~100℃
Working power supply: 50Hz, 380V, three-phase, four-wires or as per buyer’s request
Heating power: 12kW, Total power: 17kW
Pipe diameter of inlet and outlet: DN25 / DN25
Dimensions: 207×157×239cm (subject to final equipment)
Machine weight: Approx.1700Kg
Working noise: ≤80dB (A)
Continuous working time: ≥ 200 hours
Average normal running time：≥5000 hours
*The machine size, the weight will change slightly due to different configurations.
Oil Specification Purified by Transformer Oil Centrifuging Machine
Transformer oil contains 10% of gas and 50ppm of water and 30kV of break voltage can be improved to the following property:
Residual water content: ≤5-8 ppm
Residual gas content: ≤0.1%~0.3 Vol.
Dielectric strength: ≥ 70kV -75 kV /2.5mm
Removable particle size in oil: 1um
Acetylene content: none
Application of Transformer Oil Centrifuging Machine
- Transformer Oil
- Insulating Oil
- Silicon Oil
- Cable Oil
- Switch Oil
- Transformer Vegetable Oil, etc.

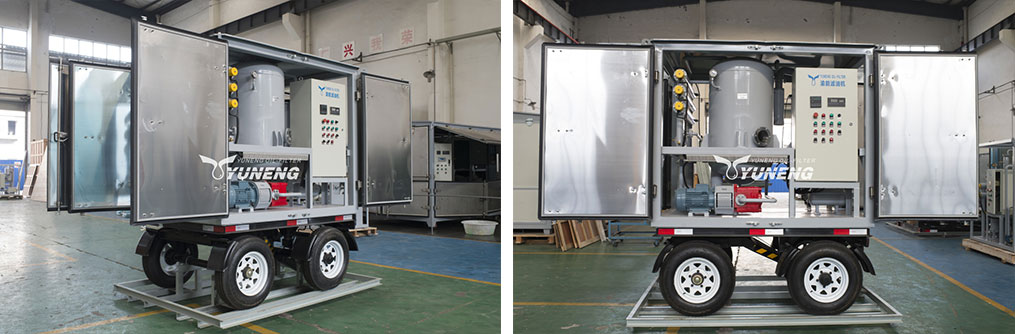

Product Images
Why Choose Our Products?
Most Authority Patents
4 invention patents and 48 national utility model patents
Most Efficient Team
we have 130 employees, including a group of professionals with many years of experience and technical development capabilities in the industry.
Well Reputation
We are recognized as the Chongqing Enterprise Technology Center by relevant functional departments in Chongqing. We can produce 1,000 sets of oil-filtering equipment and purification equipment for other fluids every year.
